The 6 Types of Prototyping Every New Product Must Do

Building a hardware product prototype is a critical element in product design.
Prototypes provide early market feedback, gives you early insight into necessary design changes, and helps teams minimize risk at every stage of the product development lifecycle.

Done right, prototyping helps remove design risks and leads to successful product outcomes.

Here are the 6 types of prototypes every successful physical product design goes through:


1. Concept Sketch Prototype

This is where product concepts meet their first real test. You are moving the product idea from your mind to paper – or computer. This can start with simple 2D Sketches or evolve into basic geometry 3D computational modeling.

Purpose: To provide quick visual solutions of possible ideas that can be shared with others for feedback.

At Design 1st, every project starts with some form of concept sketching. The output is shared with the team and reviewed to both eliminate and conceive of new solutions.

Here are several concept sketching examples of recent projects.

Blue and red pen concept sketches of the Endrelia wearable personal security device
Personal Security Wearable

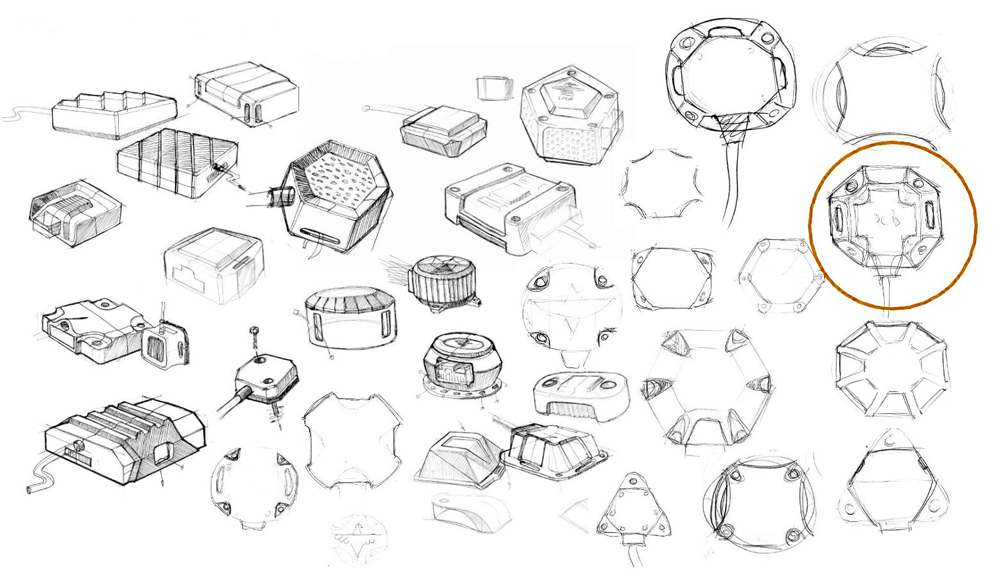

Sheet of pencil concept sketches for the Momentum GPS tracker housing, one circled in orange
Personal Security Wearable
Pencil concept sketches of curved We-Vibe massager shapes, with a hand drawing one
Personal Security Wearable
Concept sketches of the Uplift seat cushion with its handheld control and tilt mechanism
Electronic Seat Assist

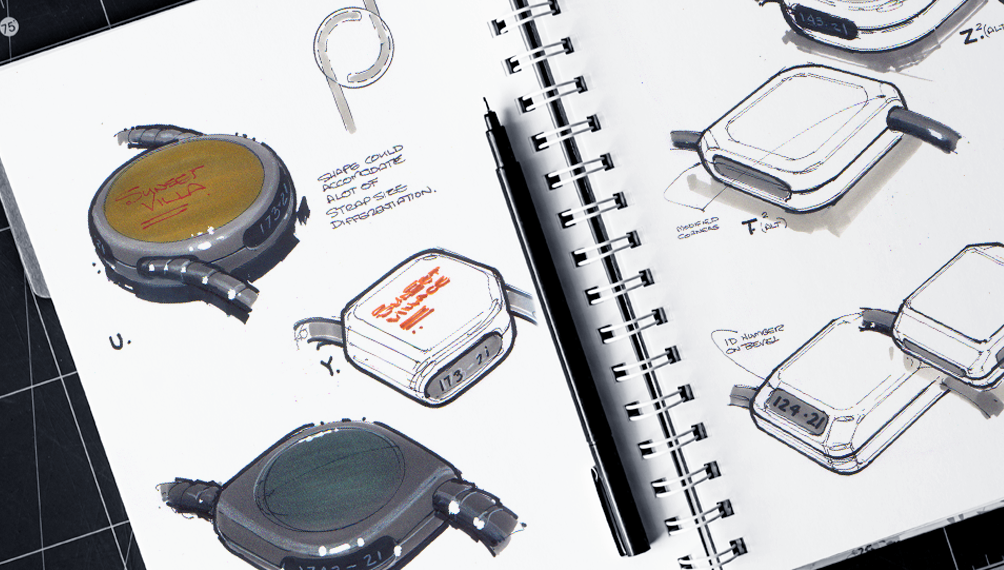

Marker concept sketches of a wearable wristband device in a sketchbook
Electronic Seat Assist
Ballpoint concept sketches of the SafeXtract mining helmet with camera, speaker and LED light annotations
Electronic Seat Assist

2. Bench Models Prototype

After a concept direction is chosen, a bench model prototype is built. This prototyping method can take many forms including virtual test models, foam mockups and custom built mechanisms. What variations you choose depends on what you need to test.

Purpose: To get an answer as quickly as possible prior to design implementation.

Depending on the project, we create a variety of bench model prototypes to test ergonomic form features, de-risk complex mechanisms, evaluate technology and get immediate user feedback. The inputs received are extremely valuable and can help accelerate product development and validate design direction.

Neptec LiDAR functional prototype: foam housing mock-up and a cardboard shell packed with wired electronics
LiDAR Mining Technology

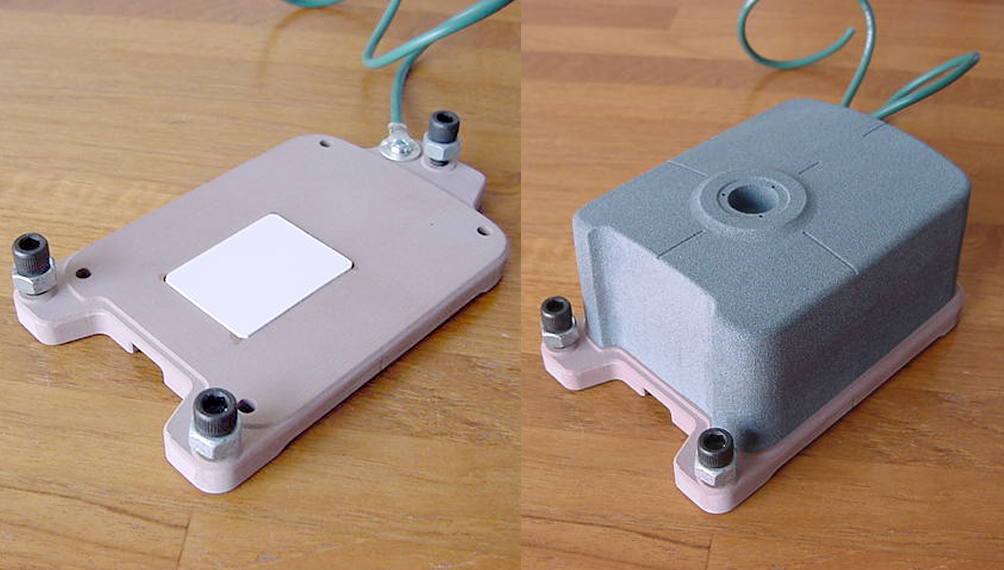

Two bench model housings for the Nanometrics Titan accelerometer with cable fittings
Mining Sensor Technology
Phone with a thermal camera clamped to a tube, imaging a foil-wrapped coil bench model
Nanomaterial Humidifier
Four BlueSLR GPS dongle prototypes from sketched foam block to translucent resin to final black housing
GPS Dongle for SLR Camera
Brytech Color Teller handset prototypes in a row from foam model to resin shells to final blue housing
Color Detection Device
SLA-printed moulds and a cast prototype of the Blue Dreams Feather personal massager
Personal Massager

3. Fully Functional Rapid Prototype

This type of prototype is where the final production solution begins to take form. All proposed design features are prototyped including structural components, electronics integration and basic user interface. The result is a physical model that matches the size, function and interaction of the final production.

Purpose: To test and verify the fully-functioning physical product.

At Design 1st, we use a variety of rapid prototyping methods to create full functional models. These include 3D Printing, SLA and CNC Machining for physical models and open-source platform and OTS (off the shelf) evaluation board configurations.

It is important to note that although the physical device functionality is seen as production intent, the actual operation technique may differ due to convenience or relevance to test outcome.

Safe-Exract-Hero (1)
SafexTract - Smart Mining Helmet
Two engineers working on the BattleBot Lucky chassis on a workshop floor
BattleBots
fan caframo parts manufacture
High Power Marine Fan
Neptec LiDAR alpha prototype on a bench with its electronics enclosure open, showing wiring
Naptec - LiDAR Detection
Functional prototype of the Fantasy Scoreboards display with LED segment boards and circuit boards on a panel
Connected NHL Scoreboard
Philips LED light strip prototype hanging from a ceiling with loose red and blue wires
Commercial Smart LED Lights

4. Visual Model Prototype

Building a visual model prototype allows you to represent the proposed production-intent product options regarding colour, material, and form. This prototype model can be helpful for early marketing purposes including crowdfunding, product packaging, and video shoots.

Purpose: To demonstrate the final product look, material, and form.

Most often the visual model prototype is non-functional or allows for controlled, minimally functional, demonstration features. This helps reduce cost and time while achieving the desired results of matching the final product look.

wearable tech breathe necklace
Connected Mindfulness Wearable
Instantel Micromate vibration monitor with a blue geophone sensor cabled on gravel
Explosion Vibration Monitoring
Presenter at a meeting beside two wall-mounted displays covered in product sketches
Smart eInk Whiteboard
Render of the blue Waterotor hydrokinetic turbine on a riverbed with arrows showing water flow
Underwater Hydroelectric Generator
Teal cartoon-monster toddler monitor hanging on a door handle while a child plays on a bed behind
Connected Toddler Monitoring
Neptec OPAL LiDAR scanner on a tripod in front of a mining haul truck
Mining Obstacle Detection

5. Pre-Production ‘Alpha’ Full Prototype

The Alpha Prototype is usually a single device made using rapid prototype techniques. The physical parts are 3D-printed, CNC machined or cast using production intent geometry. Depending on the product, production processes may be needed to produce parts that cannot be rapidly prototyped due to material, manufacturing or supplier complexities.

For electronics, PCB (printed circuit boards) are produced in low volume using production processes to evaluate and debug surface component assembly, schematic and layout. Custom firmware is ready for initial upload and testing procedures. This includes critical function software features, secondary features may be implemented later without issues.

Purpose: Validate and verify the function, look, and production process of the device.

While the primary purpose is to validate the final production-level product, this prototype may also be used for user-testing including clinical trials for medical devices.

Engineer holding a long grey tubular underground mining camera prototype
Underground Mining Camera
Handheld energy monitor prototype held up to a smart meter, its screen reading Initializing hardware
Explosion Vibration Monitoring
Uplift powered lifting seat cushion in blue, raised to show its folding mechanism and power cord
Electric Seat Assist
Three Design 1st mechanical engineers behind a blue Waterotor hydrokinetic turbine prototype outdoors
Hydroelectric Generator
Hand holding a functional prototype device wired to a phone app on a trade show demo table
Smart Vital Sign Monitor
Christie DLP projector prototype with a white 3D-printed housing, exposed wiring and a large lens
Commercial Cinema Projector

6. Manufacture Phase - Production Prototype

This is the final prototype made before volume production begins. All components of a particular product are assembled using parts that are produced using mass production methodologies. The final assembled products are tested in line to ensure the proper functionality of critical features.

Purpose: The final validation check before volume production of the product.

Quite often, these first, off the line, products are user-tested in the field under real-world applications. Select customers are chosen to give feedback regarding the product’s functional effectiveness and reliability. While the product assembly process is evaluated and optimized during this phase using the quality control (QC) guideline procedure.

After this prototype is completed and tested, a new product is ready for mass production and market!

Caframo hatch fan mounted on an open deck hatch of a sailboat in a marina
Marine Hatch Fan
Liberty Pumps NightEye sump pump alarm beside a hand holding a phone with its app
Smart Sump Pump Monitor
Production prototype of a handheld therapy stimulator with keypad and LCD beside its housing shells
Medical Neuromodulation Device
Green injection-moulded production parts with domed lids laid out in a four-cavity tray
Smart Toddler Monitor
Two people unboxing a production Edmonton Oilers Fantasy Scoreboards unit from its shipping box
Connected NHL Scoreboard
Rows of Momentum IoT Eagle 1 GPS tracker housings from a first volume production run
Telematics GPS Unit
