Ultrasonic wear technology is revolutionizing how we maintain and monitor industrial machinery, employing advanced sensors to peer into the heart of equipment without ever needing to take it apart.

By leveraging the principles of ultrasonic testing (UT), these sensors provide crucial data that help prevent equipment failure, ensuring operational efficiency and enhancing safety across various industries.

Table of Contents

What are Ultrasonic Wear Sensors?

Ultrasonic wear sensors utilize high-frequency sound waves to detect abnormalities in materials or components, making them an indispensable tool in predictive maintenance strategies. They are especially useful in environments where precision and early detection of wear and tear can save significant resources.

  • Principle: These sensors operate based on ultrasonic testing (UT), a non-destructive testing technique that uses sound waves to detect material inconsistencies.
  • Utility: Primarily used in heavy machinery, these sensors are key to timely maintenance, helping avoid costly downtimes and equipment failures.
five ultrasonic wear sensors of different shapes and sizes

Why use Ultrasonic Wear Sensors?

Incorporating ultrasonic wear sensors into maintenance strategies not only extends the lifespan of equipment and ensures operational safety but also seamlessly integrates into physical products. This integration allows for real-time health monitoring of machinery, providing immediate insights without disrupting ongoing operations.

  • Seamless Integration: Ultrasonic wear sensors can be embedded directly into machinery and components, offering real-time monitoring without the need for manual inspection.
  • Proactive Maintenance: Their ability to detect early signs of wear enables proactive maintenance, drastically reducing the likelihood of unexpected downtime.
  • Safety Enhancement: The early detection capabilities of UT sensors contribute to a safer working environment by preventing equipment failures before they can cause accidents.

How Ultrasonic Wear Sensors Work

ultrasonc-wear single

Ultrasonic wear sensors work by sending out and interpreting sound waves to assess the condition of machinery without needing to touch it. Here’s a breakdown of how they do it:

  1. Emitting Sound Waves: The sensors produce high-frequency sound waves that are too high-pitched for us to hear, which can deeply penetrate the material under observation.
  2. Wave Interaction and Reflection: When these sound waves hit an irregularity, like wear or cracks, they bounce back to the sensor.
  3. Capturing and Analyzing Signals: The sensor picks up these bounced-back waves and uses advanced analysis to figure out the material’s health or thickness.
  4. Making Maintenance Decisions: By regularly or continuously checking the data, the system identifies when the wear reaches a critical level, signaling it’s time for maintenance.

Example UT Sensors in Heavy Mining Equipment

Big Dump Truck truck bulldozer vehicle

A practical application of ultrasonic wear sensors can be seen in the mining equipment industry, where heavy machinery like excavators are subject to intense wear.

Here’s how it UT wear sensors work with an excavator’s bucket, which often wears out:

  • Placement: An ultrasonic wear sensor is attached to the bucket’s edge, which is a part that gets worn down a lot.
  • Monitoring: This sensor sends out sound waves into the bucket’s edge to keep track of how thick it is and if it’s still in good shape while it’s being used.
  • Detection: The sensor figures out how worn the bucket is by looking at how long it takes for the sound waves to bounce back. The longer it takes, the more worn the bucket is.
  • Alerts: If the bucket wears down to a certain point, the sensor system will let the operators or the maintenance team know that it’s time to fix or replace the bucket before it gets too damaged.

Types of Applications for UltraSonic Sensors:

Ultrasonic wear sensors find applications in a variety of industries, demonstrating their versatility and effectiveness in monitoring equipment health.

  • Construction Equipment: Ultrasonic wear sensors are crucial for monitoring the integrity of construction equipment like crane cables and bulldozer tracks, preventing accidents and ensuring project timelines are met.

  • Mining Equipment: These sensors are used to keep an eye on the wear and tear of mining drills and earthmover tires, helping to avoid costly downtime and ensuring the safety of mining operations.

  • Medical Devices: In healthcare, ultrasonic wear sensors ensure the reliability of life-saving medical devices, such as heart pumps and diagnostic machines, by monitoring their condition for early signs of wear.

  • Smart Agriculture: Farmers use these sensors to predict maintenance for tractors and combine harvesters, optimizing harvest times and reducing the risk of machinery failure during critical agricultural operations.

  • Food Processing: In food processing plants, sensors monitor the wear on cutting blades and mixing equipment, crucial for maintaining food safety standards and production efficiency.

  • Marine Industry: These sensors play a vital role in detecting hull thinning and corrosion in ships and submarines, ensuring vessel integrity and safety at sea.

  • Rail Transport: Ultrasonic wear sensors are key to maintaining rail safety, used for inspecting the wear and cracks in train wheels and rail tracks, preventing derailments and ensuring smooth operations.

Limitations of Ultrasonic Sensor Technology:

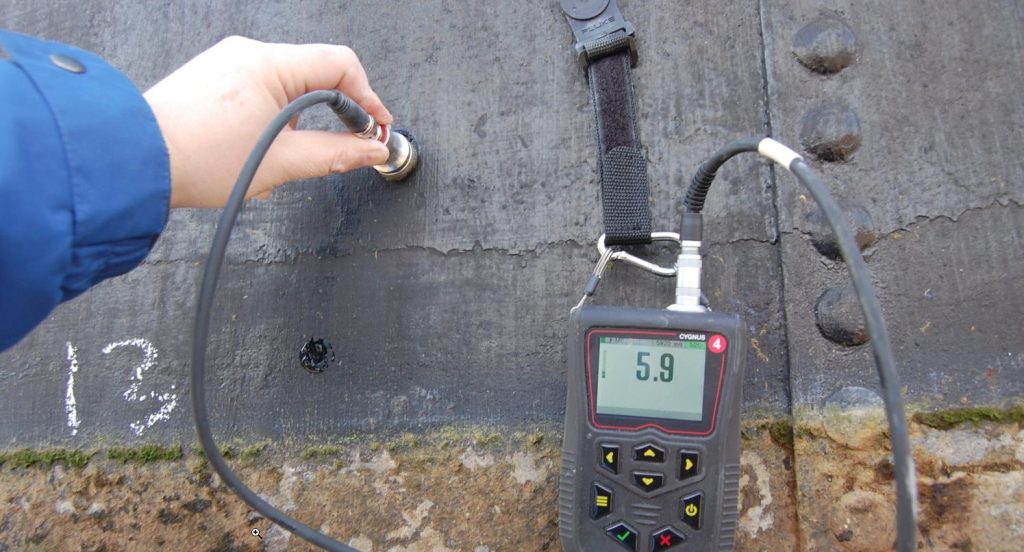

ultrasonic-wear-sensor-failure

While ultrasonic wear sensors offer significant advantages, they also come with limitations that must be considered.

  • Surface Prep: They require clean, smooth surfaces for accurate readings, challenging in rough environments like mines or construction sites.
  • Skilled Interpretation: Data analysis demands expertise in ultrasonics, scarce in remote or technologically underserved regions.
  • Material Limits: Not effective with materials like certain composites or highly porous substances due to sound absorption issues.
  • Cost Barrier: High initial and maintenance costs make them a steep investment, particularly for smaller entities.

As an alternative, Electromagnetic Acoustic Transducer (EMAT) technology offers a solution that bypasses some of these challenges, such as the need for direct contact or extensive surface preparation, potentially providing a more versatile and less labor-intensive option in certain applications.

Ultrasonic wear sensors are transforming the landscape of industrial maintenance, offering a proactive approach to equipment management. Despite their limitations, the benefits they provide in terms of safety, efficiency, and cost savings make them an invaluable tool in the modern industrial sector.
